glass wall -System 3400 / 3400eco

Product information

Fully glazed wall with single glazing

Without vertical posts, this versatile fully glazed system with single glazing combines maximum transparency and a high degree of economy. Its elegance and very short assembly times are particularly impressive. The basis is a variable aluminium floor and ceiling profile, which can support a number of different types of glazing. It is compatible with other Strähle wall systems and suitable for corridors where high transparency is required.

Technical Data

  • Design: All-glass design
  • Version: Single glazing 10 – 24 mm toughened glass/laminated glass
  • Element type: All-glass, ceiling-high
  • Surface: Aluminium profiles in E6/EV1 or powder-coated
  • Wall thickness: 22 – 50 mm
  • Glass edging: Silicon joint, cross profile dry joint or bonding
  • Doors: All-glass doors, aluminium frame doors, solid doors, sliding doors
  • Accessories: Absorber elements (fitted as a shell in front of the glass)


Sound insulation

Schalldämmung: 32 – 41 dB

Fire protection

F0

Sustainability

  • Certificate: Cradle to Cradle®-certificate as System 3400 eco
  • EPD (Environmental product declaration) zertification
  • Excellent conversion capability and re-usability
  • High-grade materials which are extremely long-lasting
  • Easily separable materials (dismantling, recycling)
  • Materials can be recycled after use
  • Harmless main material types: glass, aluminium, steel, wood-based materials
  • Building certificate: DGNB, LEED, BREEAM; HafenCity

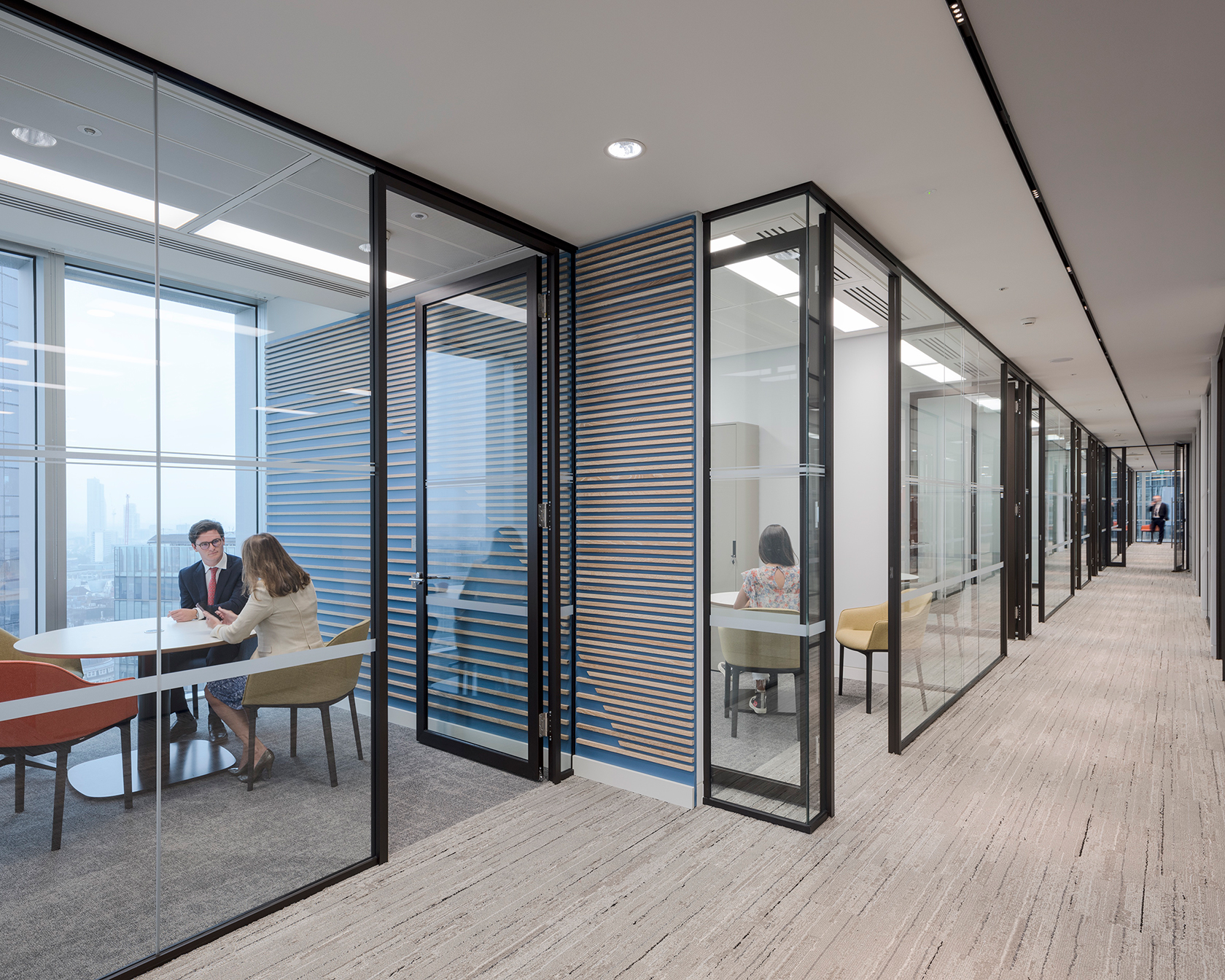

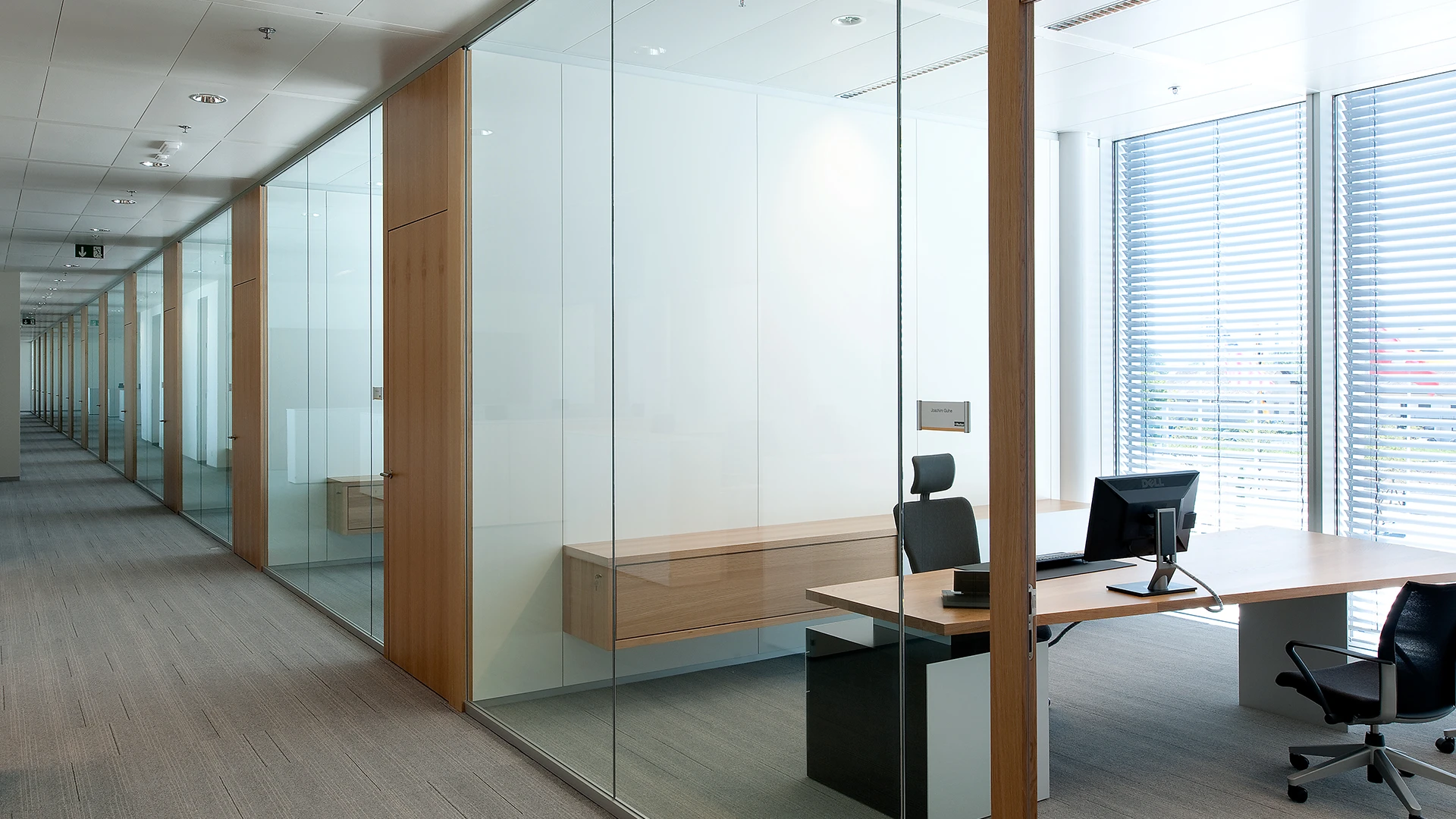

Picture gallery

Technical Details

Design

Fully-glazed construction

Construction

Single glazed 10-24 mm toughend safety glass / acoustic laminated glass

Element types

Fully-glazed, floor to ceiling

Surfaces

Aluminium profiles in E6 EV1 or powder-coated

Wall thickness

22 – 50 mm

Glass joint

Cruciform dry joint, silicon seal or bonded

Sound insulation

Up to Rwp 41 dB

Doors

Fully-glazed doors, aluminium-framed doors, solid doors, sliding doors

Accessories

Absorption elements (fitted as a shell in front of the glass)

Ceiling connection Glass element
Download
Wall connection Glass element
Download
Floor connection Glass element
Download
Modular grid joint Glass element
Download

Case studies

Downloads

Partition system 3400

Technical Documentation

Overview partition walls

All systems at a glance.

EPD zertification system 3400
